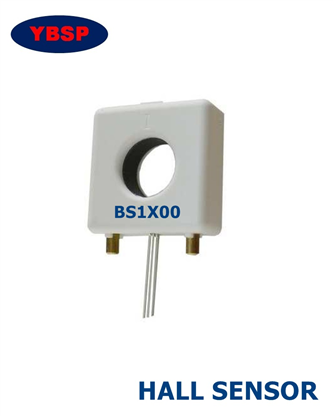

■ Diameter 9.0mm conductor through hole ■ Output voltage proportional to AC and DC current ■ Wide sensing current range 0~200A at 5V volt. ■ High sensitivity: BS1500:11mV/A, BS1600: 20mV/A BS1700: 30mV/A, BS1800: 60mV/A ■ Wide operating voltage range 3.0~12 V.■ Low operating current 3mA■ Isolation voltage 4000V■ Ratiometric output from supply voltage■ 23K Hz Bandwidth■ Two bronze sticks for easy soldering on PCB
Please refer to the following datasheet
