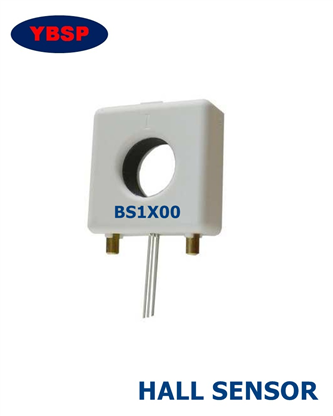

■ Diameter 9.0mm conductor through hole
■ Output voltage proportional to AC and DC current
■ Wide sensing current range 0~200A at 5V volt.
■ High sensitivity:
BS1500:11mV/A, BS1600: 20mV/A BS1700: 30mV/A,
BS1800: 60mV/A
■ Wide operating voltage range 3.0~12 V.
■ Low operating current 3mA
■ Isolation voltage 4000V
■ Ratiometric output from supply voltage
■ 23K Hz Bandwidth
■ Two bronze sticks for easy soldering on PCB
